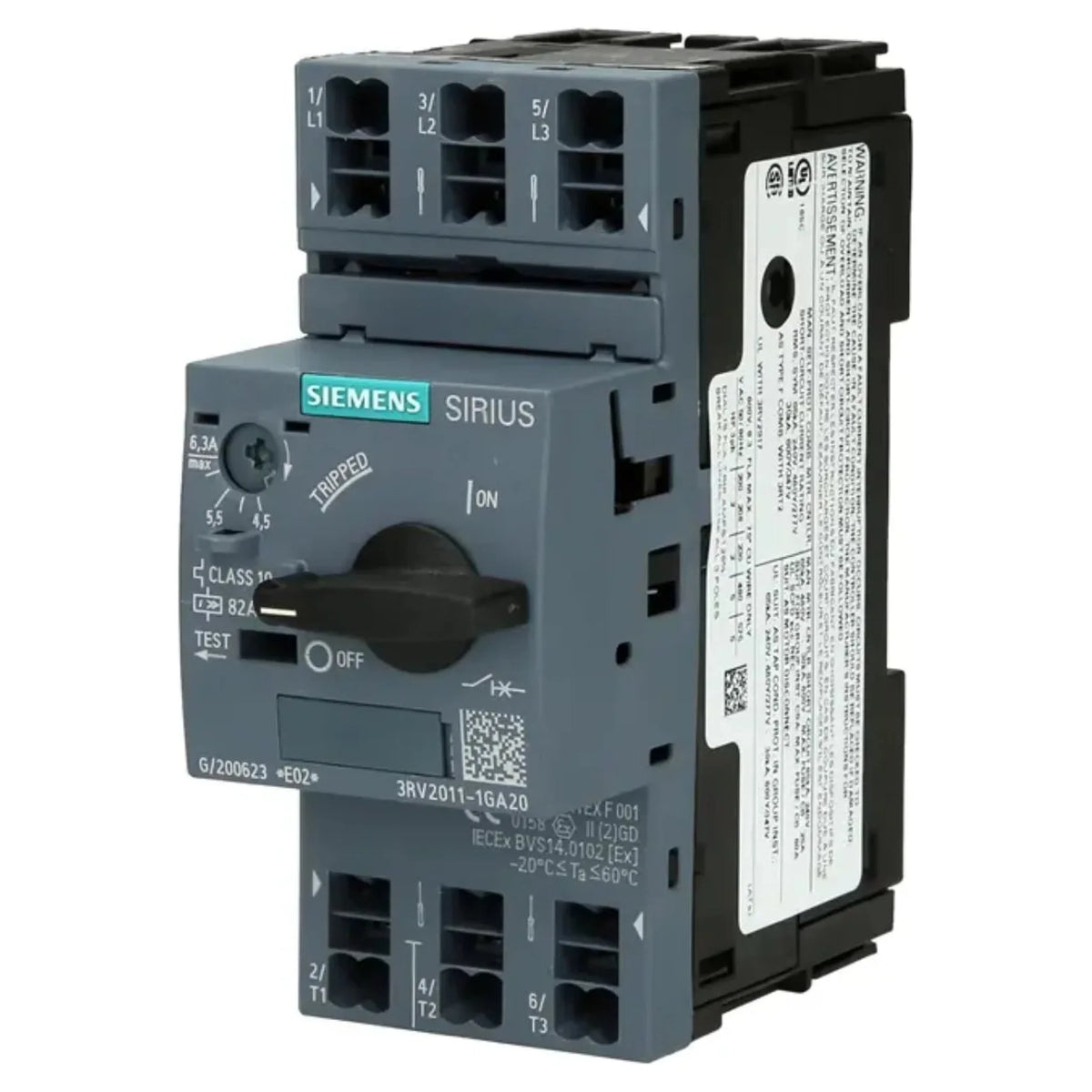

3RV2011-1GA20

The Siemens 3RV2011-1GA20 motor starter protector is engineered for industrial applications, providing essential safeguarding for motors and machinery up to 2.2 kW. By ensuring reliable protection against overloads and short circuits, this component minimizes the risk of production interruptions and enhances operational efficiency, making it a vital asset in modern manufacturing environments.

• Brand: Siemens
• Part Number: 3RV2011-1GA20
• Condition: Brand New
• Operational Voltage: 20 to 690 V AC, 50/60 Hz
• Operational Current: 6.3 A
• Power Rating at 400 V AC-3: 2.2 kW
• Number of Poles: 3
• Insulation Voltage: 690 V
• Surge Voltage Resistance: 6 kV
• Mechanical Lifespan: Up to 100,000 operating cycles
• Electrical Endurance: Approximately 100,000 cycles
• Mounting: DIN rail mounting with screw and snap-on options
• Dimensions (H x W x D): 106 mm x 45 mm x 97 mm
• Weight: Approximately 0.373 kg
• Protection Class: IP20
• Operating Temperature Range: -20°C to +60°C
• Certifications: CE, UL, CSA, ATEX, CCC, EAC, IECEx, VDE
• Features:
  - Adjustable Thermal Overload Release (4.5 to 6.3 A)
  - Fixed Magnetic Release (82 A)
  - Compact Size S00
  - Spring-Type Term

We understand that minimizing downtime is critical to your operations. All in-stock orders are processed and prepared for dispatch with a standard handling time of 1 to 3 business days. Once your package ships, you will receive full tracking details to monitor your delivery every step of the way.

Quality and reliability are standard across our entire catalog. We stand behind our inventory by providing a comprehensive 1-year warranty on all parts. If you encounter any defects or performance issues within the first year, our support team is ready to assist you in resolving the issue quickly.
