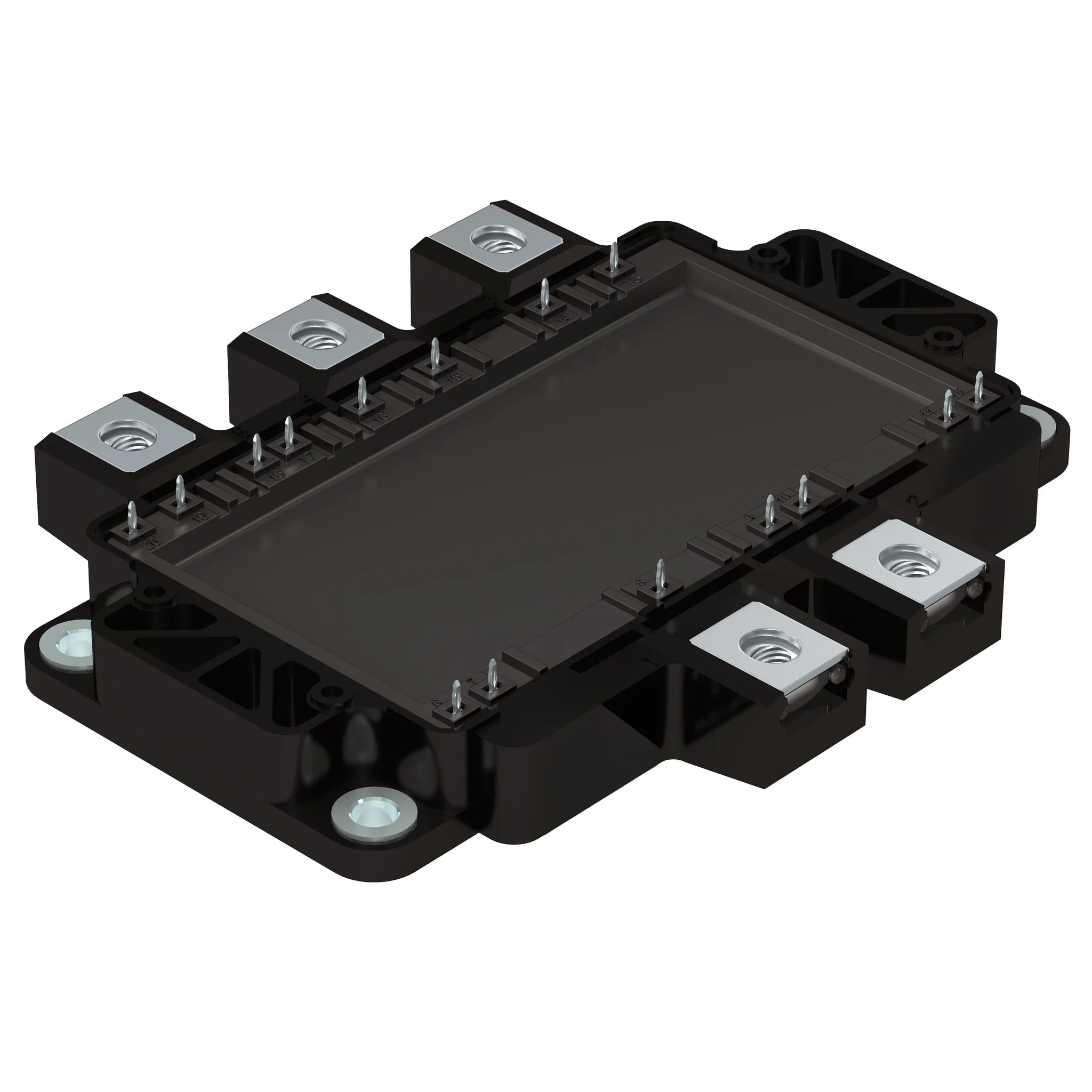

SEMIX305GD07E4

The SEMIX305GD07E4 from Semikron is a high-performance IGBT module specifically designed for demanding industrial applications, including three-phase inverters for AC motor speed control and uninterruptible power supplies (UPS). This robust component not only enhances efficiency and reliability but also plays a crucial role in mitigating supply chain disruptions and minimizing manufacturing delays, ensuring that your production timelines remain on track.

• Brand: Semikron
• Part Number: SEMIX305GD07E4
• Condition: Brand New
• Current (A): 300 A
• Voltage (V): 650 V
• Dimensions (LxWxH): 130 x 70 x 17 mm
• Housing: SEMiX 5p
• Technology: IGBT
• Topology: Sixpack
• Features:
  - Solderless assembly solution with PressFIT signal pins and screw power terminals
  - IGBT 4 Trench Gate Technology
  - V CE(sat) with positive temperature coefficient
  - Low inductance case
  - Reliable mechanical design with injection moulded terminals and robust internal connections
  - UL recognized file no. E63532
  - NTC temperature sensor inside
• Typical Applications: Three-phase inverters for AC motor speed control, UPS

We understand that minimizing downtime is critical to your operations. All in-stock orders are processed and prepared for dispatch with a standard handling time of 1 to 3 business days. Once your package ships, you will receive full tracking details to monitor your delivery every step of the way.

Quality and reliability are standard across our entire catalog. We stand behind our inventory by providing a comprehensive 1-year warranty on all parts. If you encounter any defects or performance issues within the first year, our support team is ready to assist you in resolving the issue quickly.
