DBI 25-22 P

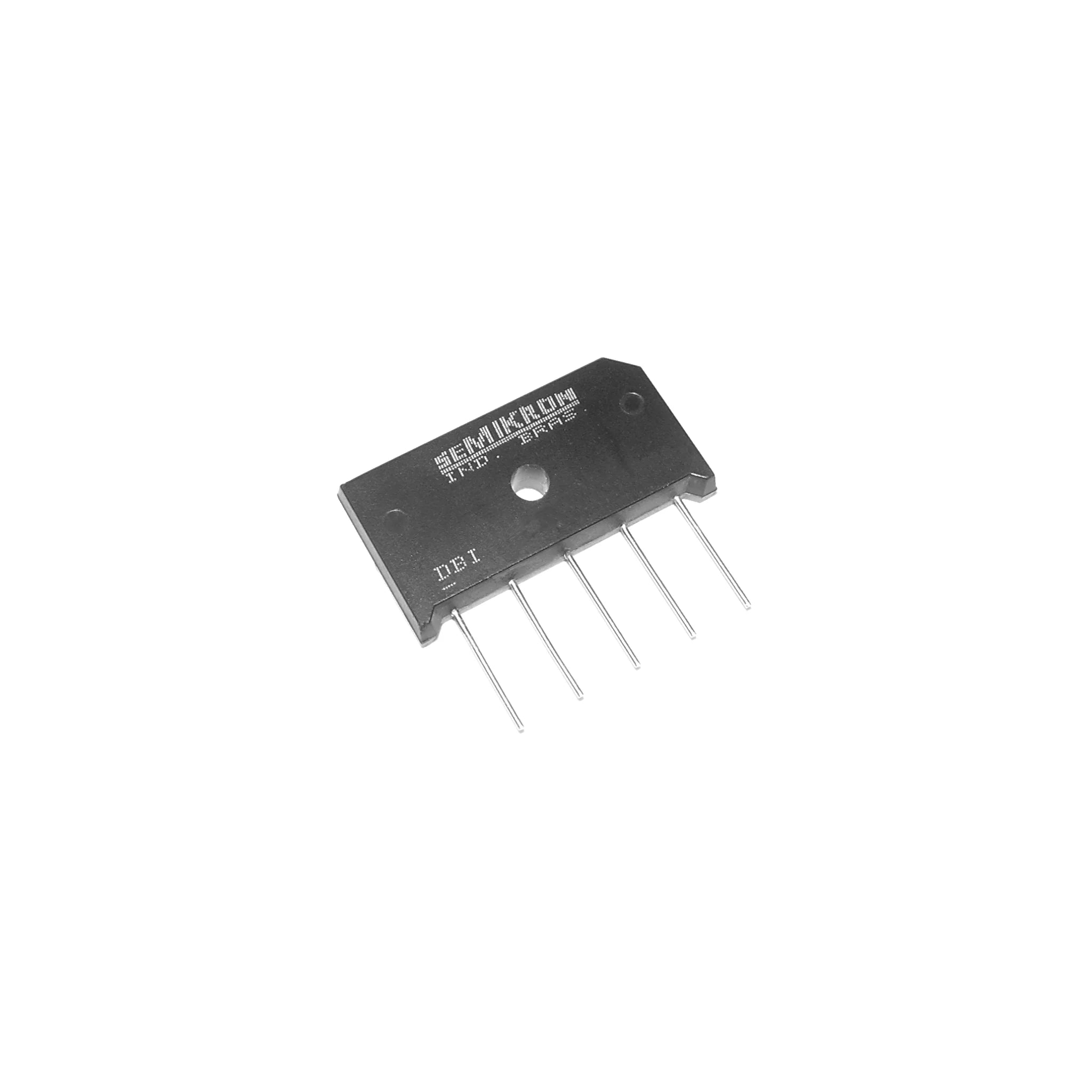

The Semikron DBI 25-22 P Miniature Bridge is engineered to excel in demanding industrial environments, particularly in power supply applications. With its compact design and robust specifications, this module is ideal for rectifying power in variable frequency drives and battery charger systems, effectively mitigating supply chain disruptions and expediting production schedules.

• Brand: Semikron
• Part Number: DBI 25-22 P
• Condition: Brand New
• Current (A): 27 A
• Surge current (A): 310 A
• Voltage (V): 2200 V
• Dimensions (LxWxH): 40x22x7 mm
• Features:
  - Isolated metal case with in-line wire leads
  - Ideal for printed circuit boards
  - Allows easy heatsink mounting
  - Solder temperature: 260 °C max. (max 5 s)
  - Blocking voltage up to 2200 V
  - High surge current
• Housing: DBI P
• Technology: Miniature Bridge
• Topology: Rectifier
• Typical applications:
  - Rectifier for power supplies
  - Input rectifier for variable frequency drives
  - Rectifier for DC motor field supplies
  - Battery charger rectifiers
• Recommended snubber network: R C : 50 Ω, 0.1 µF, (P R = 1 W)
