DBI 25-16 P

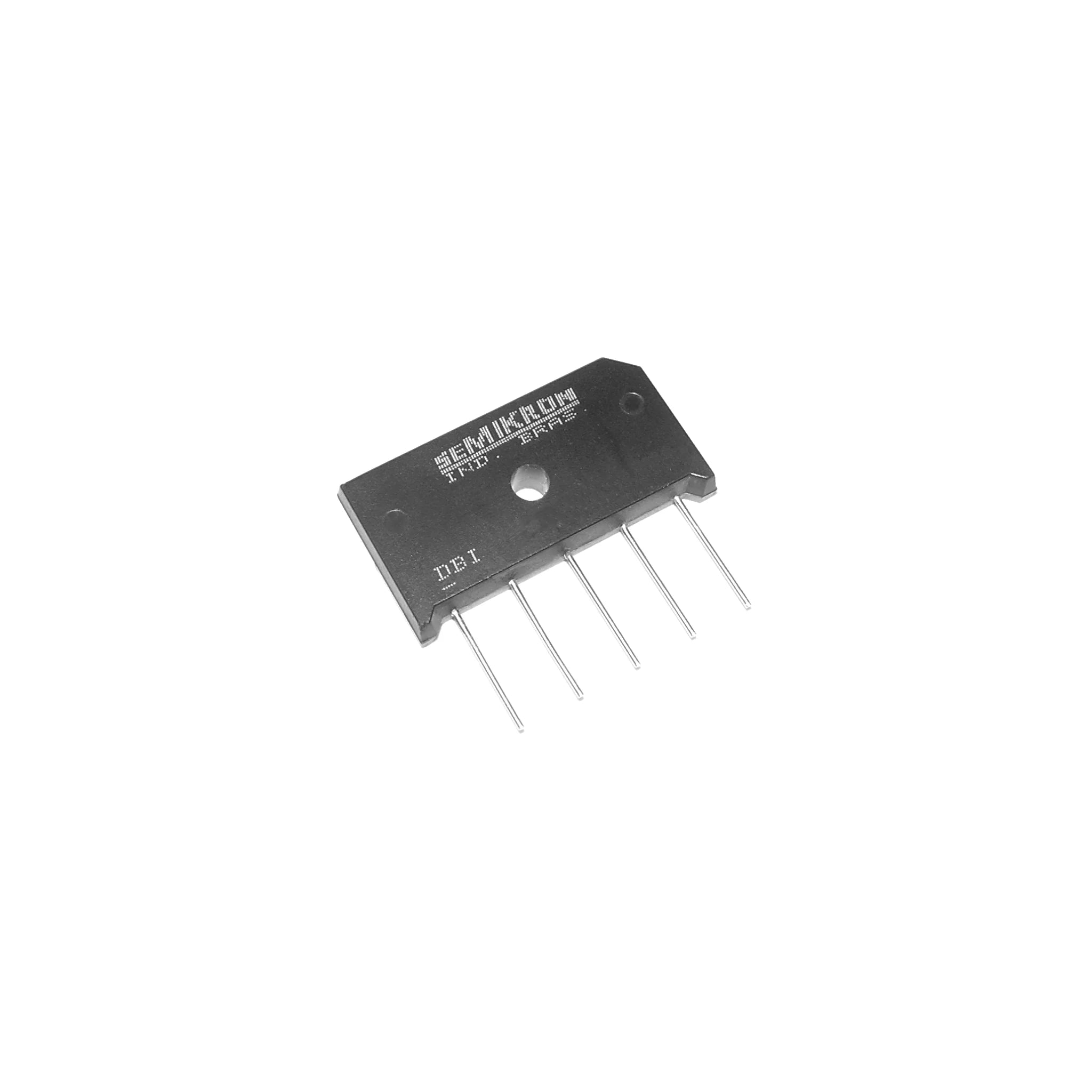

The Semikron DBI 25-16 P Miniature Bridge is a high-performance power module designed for a variety of industrial applications. Ideal for rectification in power supplies, variable frequency drives, and battery chargers, this component ensures operational efficiency and reliability, effectively mitigating supply chain bottlenecks and curbing potential manufacturing delays. With expedited warehousing and shipping, the DBI 25-16 P is your go-to solution for seamless project execution.

• Brand: Semikron
• Part Number: DBI 25-16 P
• Condition: Brand New
• Current (A): 27 A
• Surge Current (A): 310 A
• Voltage (V): 1600 V
• Dimensions (LxWxH): 40x22x7 mm
• Housing: DBI P
• Technology: Miniature Bridge
• Topology: Rectifier
• Features:
  - Isolated metal case with in-line wire leads
  - Ideal for printed circuit boards
  - Allows easy heatsink mounting
  - Solder temperature: 260 °C max. (max 5 s)
  - Blocking voltage up to 2200 V
  - High surge current
• Typical Applications:
  - Rectifier for power supplies
  - Input rectifier for variable frequency drives
  - Rectifier for DC motor field supplies
  - Battery charger rectifiers
• Recommended Snubber Network: R C : 50 Ω, 0.1 µF, (P R = 1 W)
