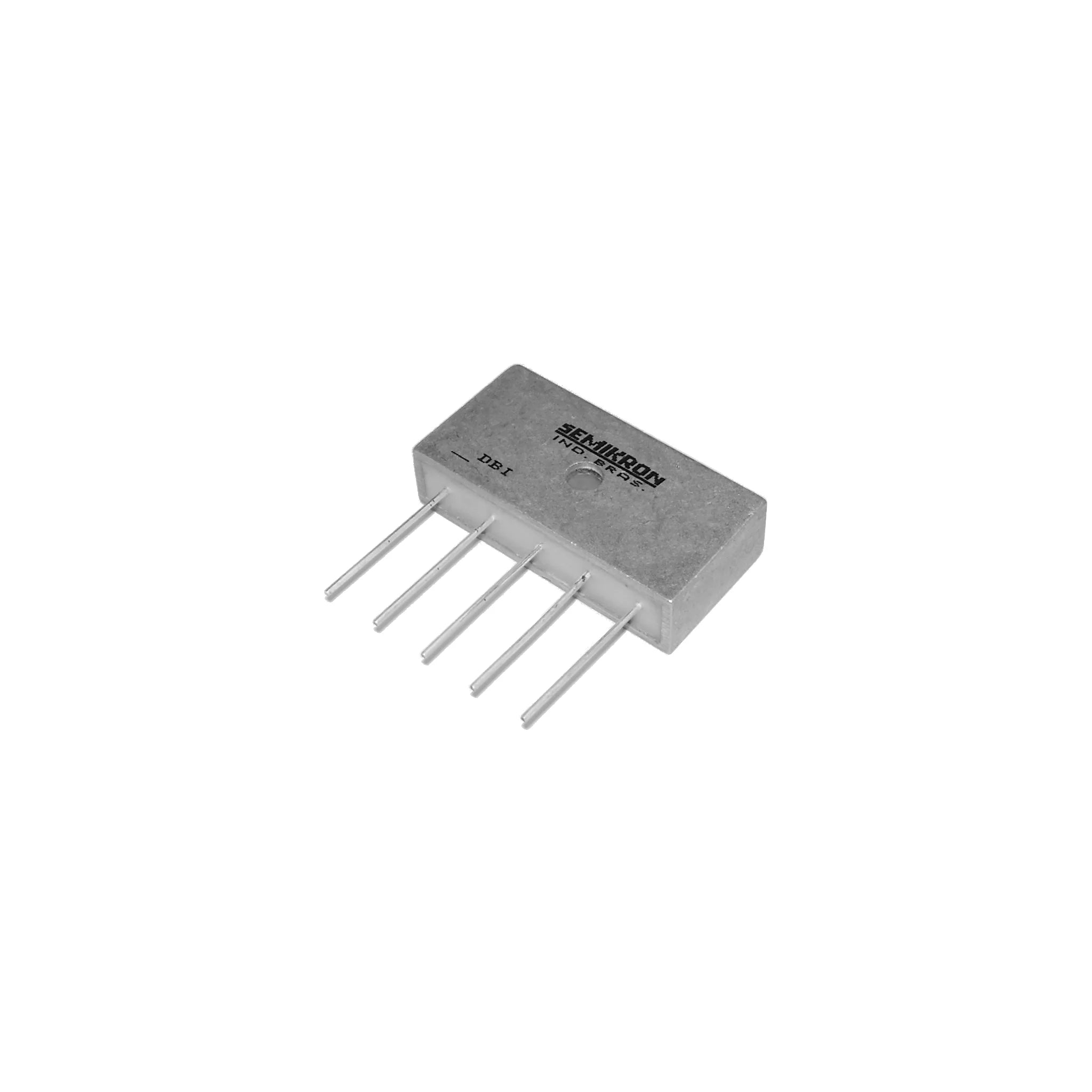

DBI 25-16

The Semikron DBI 25-16 Miniature Bridge module is engineered to enhance efficiency in demanding industrial applications. With its robust design and high performance, this component is ideal for rectification tasks such as power supplies and motor control, ensuring seamless operations while minimizing downtime.

• Brand: Semikron
• Part Number: DBI 25-16
• Condition: Brand New
• Current (A): 25 A
• Dimensions (LxWxH): 40x20x10 mm
• Features:
  - Isolated metal case with in-line wire leads
  - Ideal for printed circuit boards
  - Allows easy heatsink mounting
  - Solder temperature: 260 °C max. (max 5 s)
  - Blocking voltage up to 1600 V
  - High surge current
• Housing: DBI
• Surge current (A): 310 A
• Technology: Miniature Bridge
• Topology: Rectifier
• Typical applications: Rectifier for power supplies, Input rectifier for variable frequency drives, Rectifier for DC motor field supplies, Battery charger rectifiers
• Recommended snubber network: R C: 50 Ω, 0.1 µF (P R = 1 W)
• Voltage (V): 1600 V
