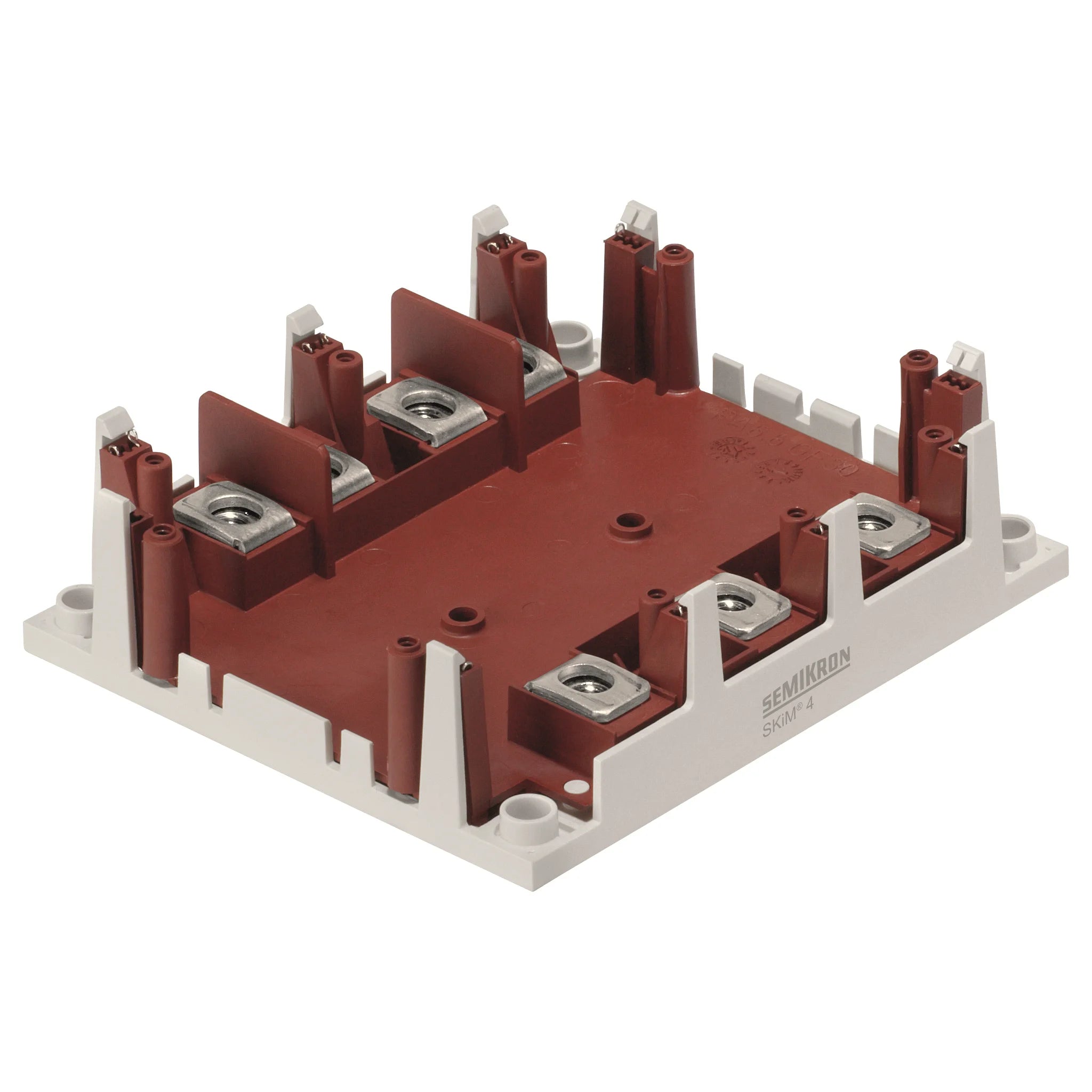

Semikron SKIM400GD126DLM-M01 IGBT
Semikron SKIM400GD126DLM-M01 IGBT

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

SEMIKRON

SKIM400GD126DLM-M01

SKU: 826887
In stock
Usually ships within 24 -48 hours
Request a Quote
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

SKIM400GD126DLM-M01 - Semikron Danfoss Power Module

  • Current (A): 300 A
  • Dimensions (LxWxH): 123x107x35
  • Features: Pressure contact technology for thermal contacts Isolated by AIN DCB (Direct Copper Bonded) ceramic plate Integrated temperature sensor Trench gate IGBT with field stop layer Spring contact system to attach driver PCB to the control terminals Low inductance case Fast & soft inverse CAL diodes
  • Housing: SKiM 4
  • Technology: IGBT
  • Topology: Sixpack
  • Typical applications: Switched mode power supplies Three phase inverters for AC motor speed control Switching (not for linear use)
  • Voltage (V): 1200 V
