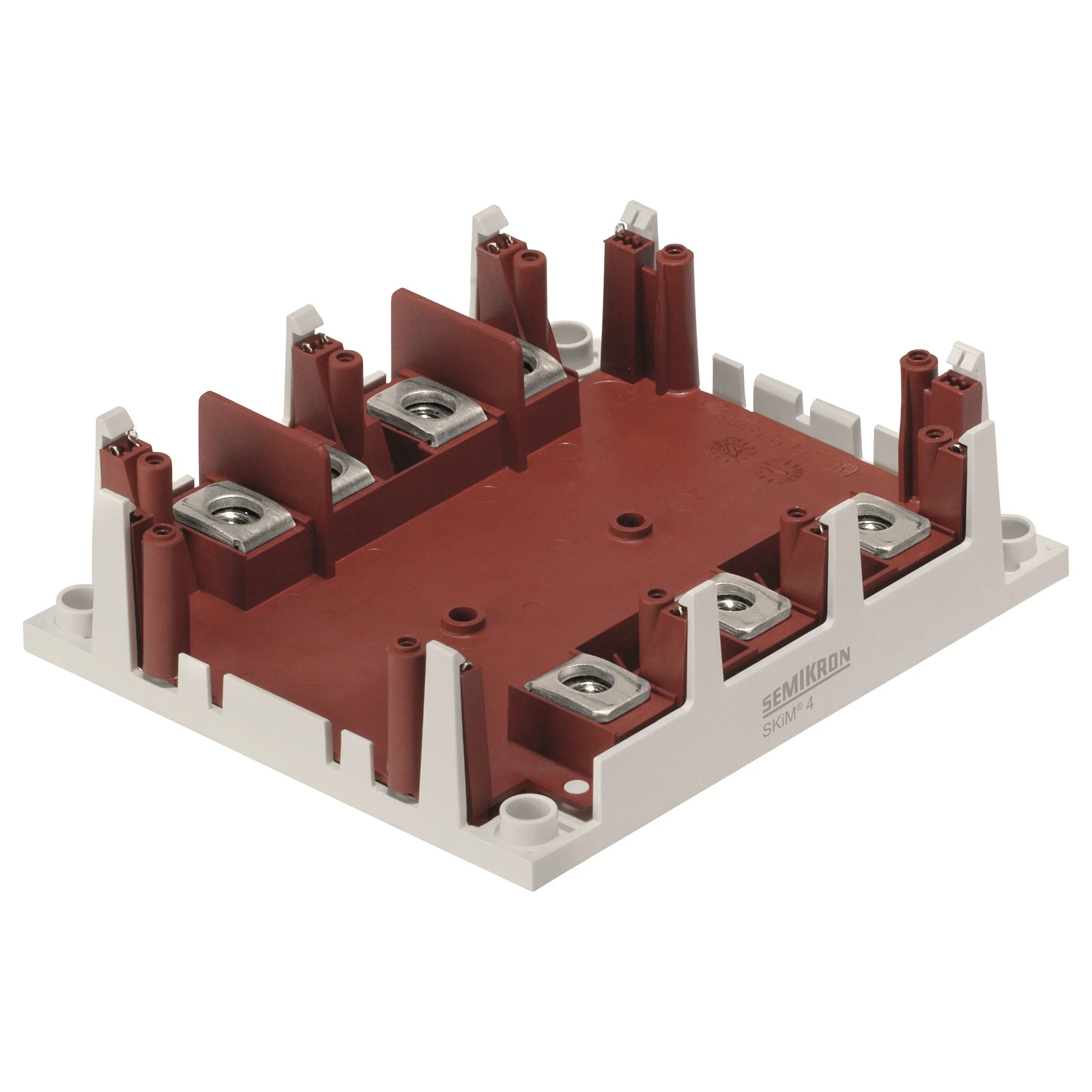

Semikron SKIM200GD126D-M05 IGBT
Semikron SKIM200GD126D-M05 IGBT

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

SEMIKRON

SKIM200GD126D-M05

SKU: 826869
In stock
Usually ships within 24 -48 hours
Request a Quote
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

SKIM200GD126D-M05 - Semikron Danfoss Power Module

  • Current (A): 200 A
  • Dimensions (LxWxH): 123x107x35
  • Features: Solderless sinter technology Low inductance case High short circuit capability, self limiting to 6 x I C Pressure contact technology for thermal contacts and electrical contacts IGBT 3 Trench Gate Technology V CE(sat) with positive temperature coefficient Isolated by Al 2 O 3 DCB (Direct Copper Bonded) ceramic substrate Integrated temperature sensor
  • Housing: SKiM 4
  • Technology: IGBT
  • Topology: Sixpack
  • Typical applications: High reliability AC inverter wind High reliability AC inverter drives Automotive inverter
  • Voltage (V): 1200 V
