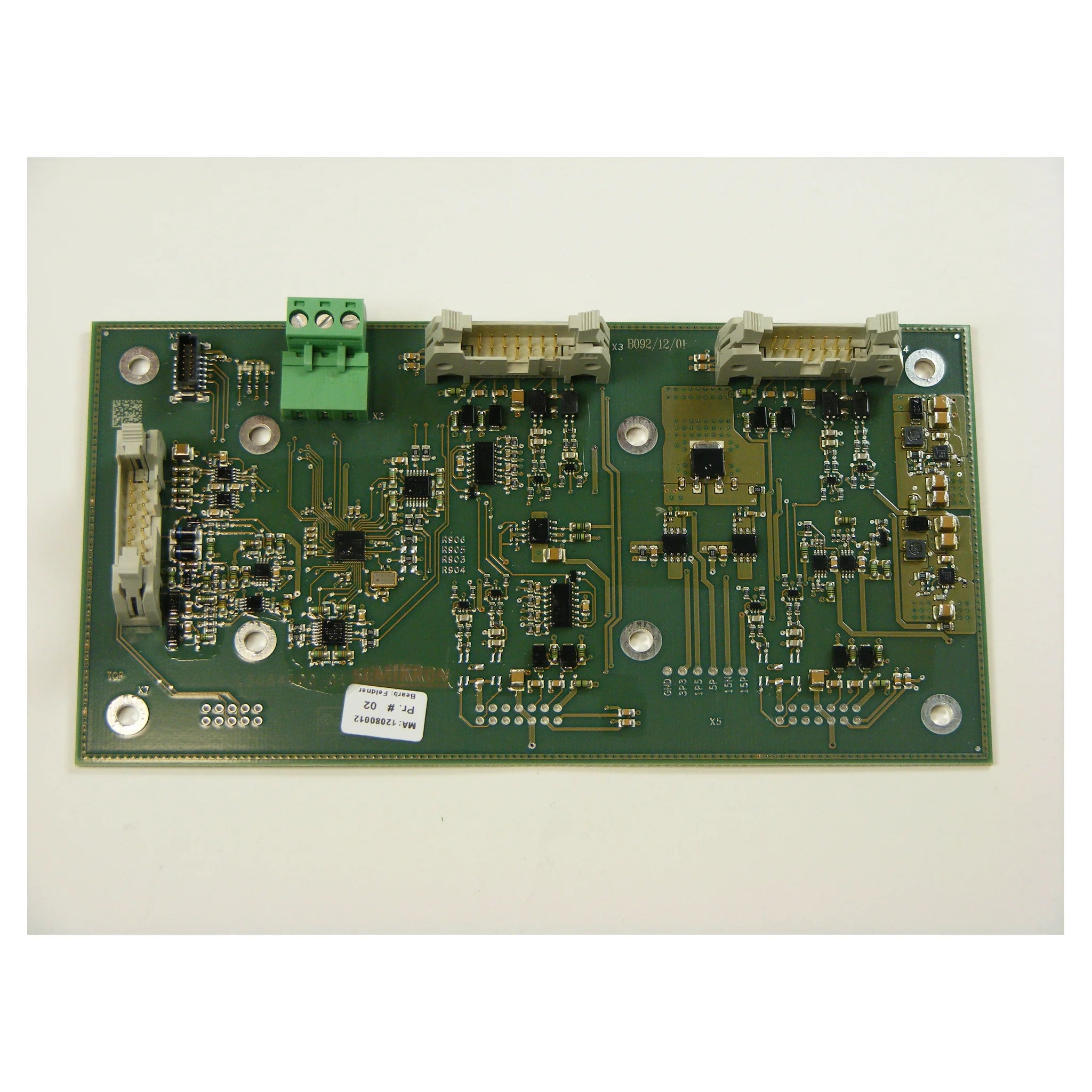

SKIIP3 PARALLELBOARD 2-FACH - Semikron Danfoss Power Module

  • Features: Driving 2 SKiiP in parallel for higher load current The controller drives 2 SKiiP3 subsystems through one interface Short pulse suppression and extension Generation of dominant dead time for all paralleled SKiiP3 F-Option board can be easily mounted Detection and handling of error signals from paralleled SKiiP3 Handling of analogue signals from paralleled SKiiP3 Monitoring of internal generated supply voltages Can be mounted using M4 metal screws Coated with varnish Climate class acc. to IEC60721-3-3: 3K3 Protection level acc. to IEC 60529: IP00 Read more
  • Housing: SKiiP Accessories
  • Technology: SKiiP Utilities
  • Topology: No switches
  • Typical applications: Paralleling of 2 GB type SKiiP3 Using one controller for driving all paralleled SKiiP3
