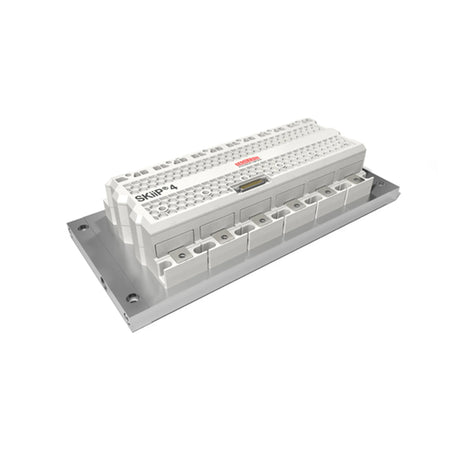

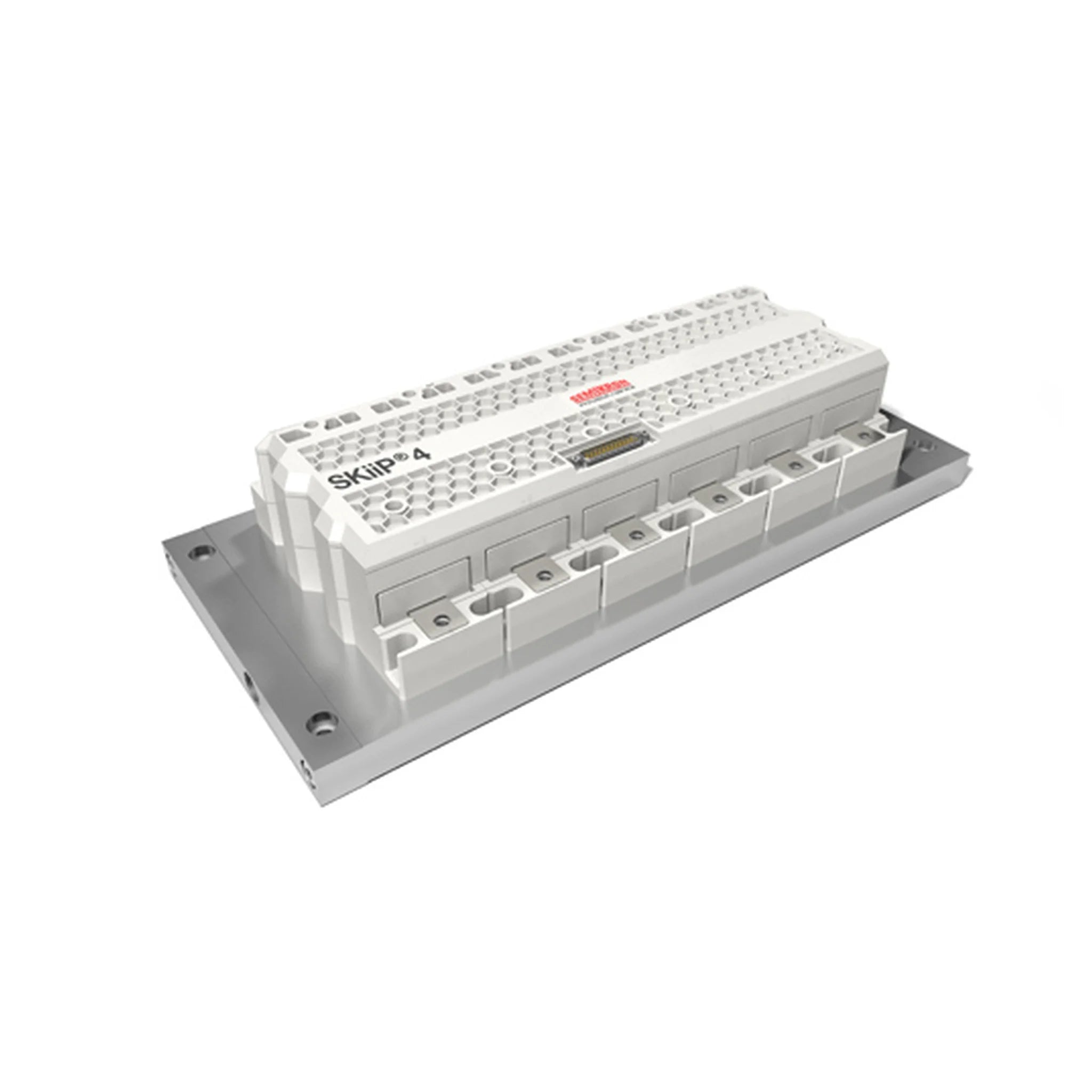

Semikron SKIIP 3614 GB12E4-6DUW IGBT
Semikron SKIIP 3614 GB12E4-6DUW IGBT

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

SEMIKRON

SKIIP 3614 GB12E4-6DUW

SKU: 924933
In stock
Usually ships within 24 -48 hours
Request a Quote
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

SKIIP 3614 GB12E4-6DUW - Semikron Danfoss Power Module

  • Current (A): 3600 A
  • Dimensions (LxWxH): 480x215x102
  • Features: Intelligent Power Module Integrated current and temperature measurement Integrated DC-link measurement Solder free power section IGBT4 and CAL4F technology T jmax = 175°C Safety isolated switching and sensor signals Digital signal transmission CAN Interface 100% tested IPM RoHS compliant UL file no. E242581 Read more
  • Housing: SKiiP 4
  • Technology: IGBT
  • Topology: Half Bridge
  • Typical applications: Renewable energies Traction Elevators Industrial drives
  • Voltage (V): 1200 V

Share additional product information such as usage instructions, sizing guides, etc.
