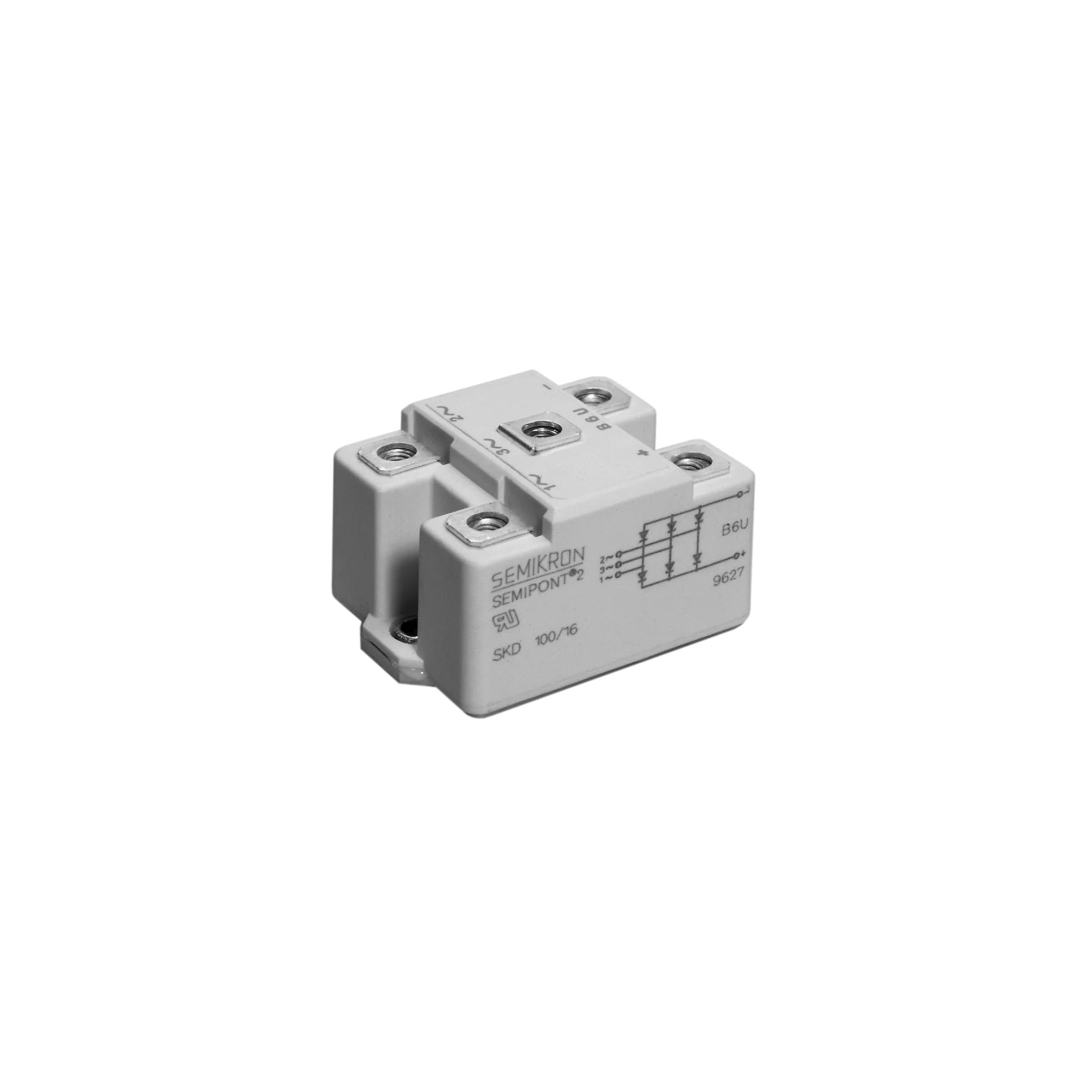

Semikron SKDH 100/14 Bridge
Semikron SKDH 100/14 Bridge

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

SEMIKRON

SKDH 100/14

SKU: 825811
In stock
Usually ships within 24 -48 hours
Request a Quote
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

SKDH 100/14 - Semikron Danfoss Power Module

  • Current (A): 100 A
  • Dimensions (LxWxH): 65x48x36
  • Features: Fully controlled three phase bridge rectifier Robust plastic case with screw terminals Large, isolated base plate Blocking voltage to 1400V High surge currents Easy chassis mounting UL recognized, file no. E 63 532
  • Housing: SEMIPONT 2
  • Surge current (A): 850 A
  • Technology: Bridge
  • Topology: Rectifier
  • Typical applications: For DC drives with a fixed direction of rotation Controlled field rectifiers for DC motors Controlled battery charger rectifiers
  • Voltage (V): 1400 V
