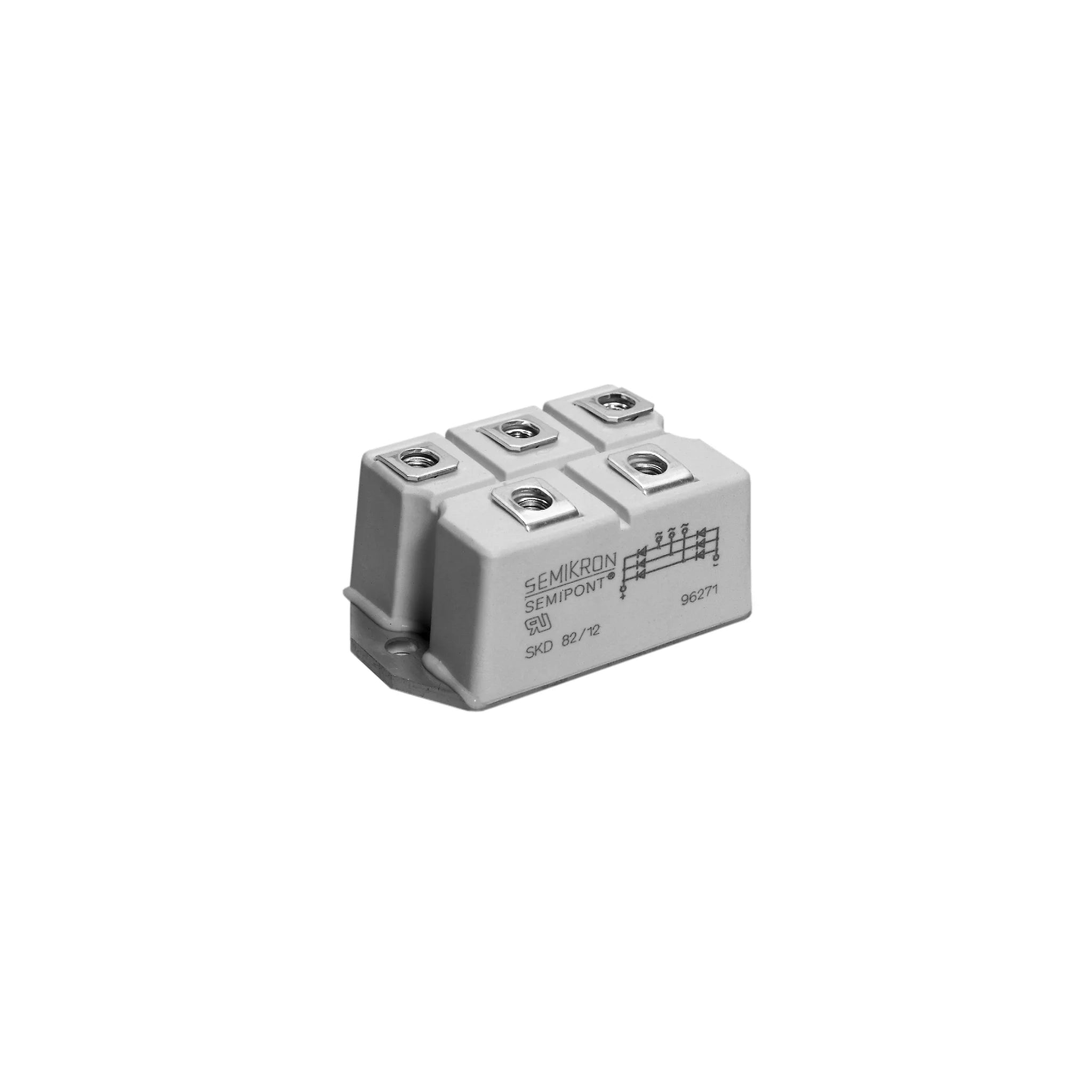

Semikron SKD 82/16 Bridge
Semikron SKD 82/16 Bridge

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

SEMIKRON

SKD 82/16

SKU: 825801
In stock
Usually ships within 24 -48 hours
Request a Quote
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

SKD 82/16 - Semikron Danfoss Power Module

  • Current (A): 80 A
  • Dimensions (LxWxH): 72x42x30
  • Features: Robust plastic case with screw terminals Large, isolated base plate Blocking voltage up to 1800 V High surge current Three phase bridge rectifier Easy chassis mounting UL recognized, file no. E 63 532
  • Housing: SEMIPONT 3
  • Surge current (A): 640 A
  • Technology: Bridge
  • Topology: Rectifier
  • Typical applications: Three phase rectifiers for power supplies Input rectifiers for variable frequency drives Rectifiers for DC motor field supplies Battery charger rectifiers
  • Voltage (V): 1600 V
