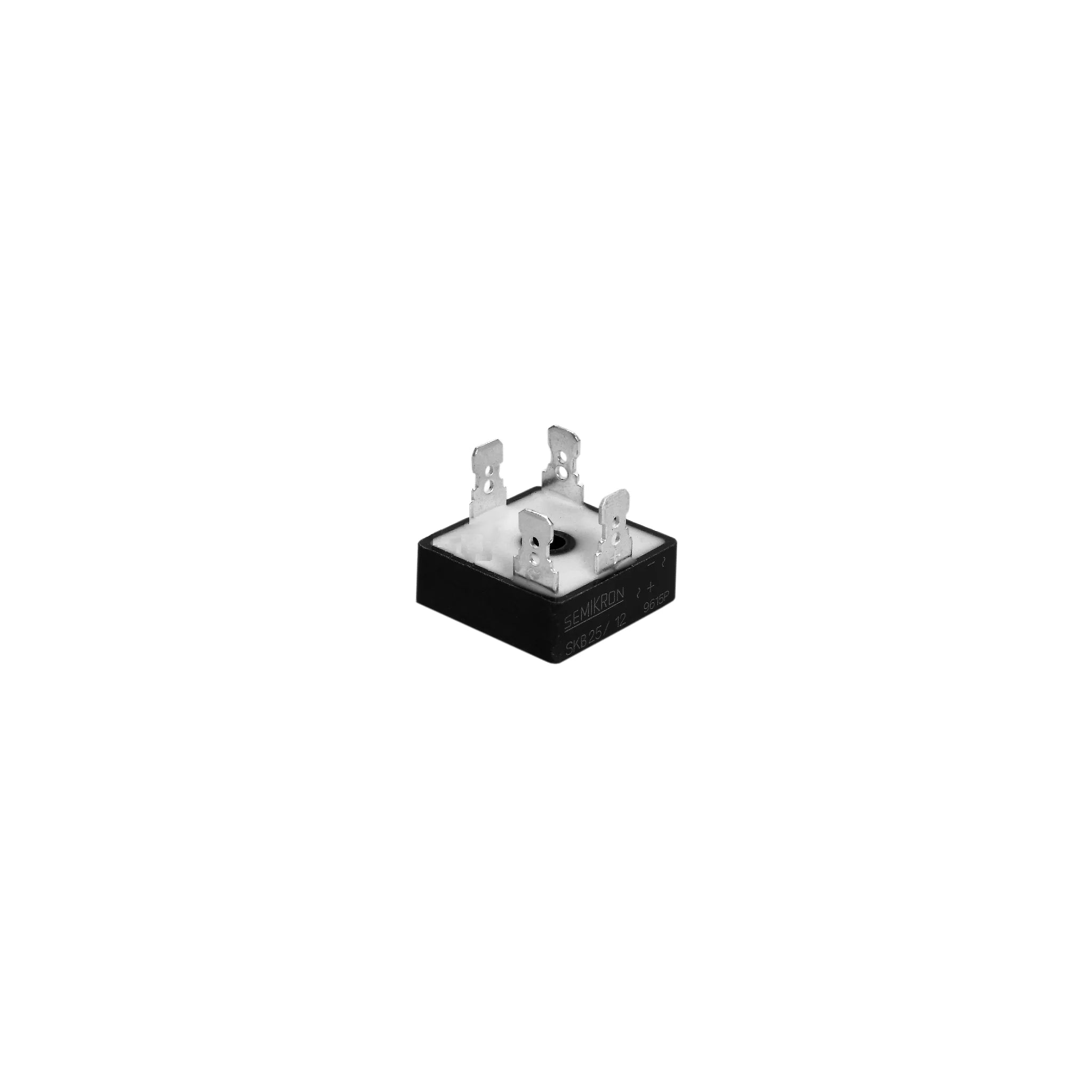

Semikron SKB 25/12 Miniature Bridge
Semikron SKB 25/12 Miniature Bridge

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

SEMIKRON

SKB 25/12

SKU: 825731
In stock
Usually ships within 24 -48 hours
Request a Quote
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

SKB 25/12 - Semikron Danfoss Power Module

  • Current (A): 17 A
  • Dimensions (LxWxH): 29x29x10
  • Features: Square plastic case with isolated metal base plate and fast-on connectors Blocking voltage up to 1600 V High surge current Easy chassis mounting UL recognized, file no. E 63 532
  • Housing: G 10b
  • Surge current (A): 320 A
  • Technology: Miniature Bridge
  • Topology: Rectifier
  • Typical applications: Rectifier for power supplies Input rectifier for variable frequency drives Rectifier for DC motor field supplies Battery charger rectifiers Recommended snubber network: RC: 50 Ω, 0.1 µF (P R = 1 W)
  • Voltage (V): 1200 V
