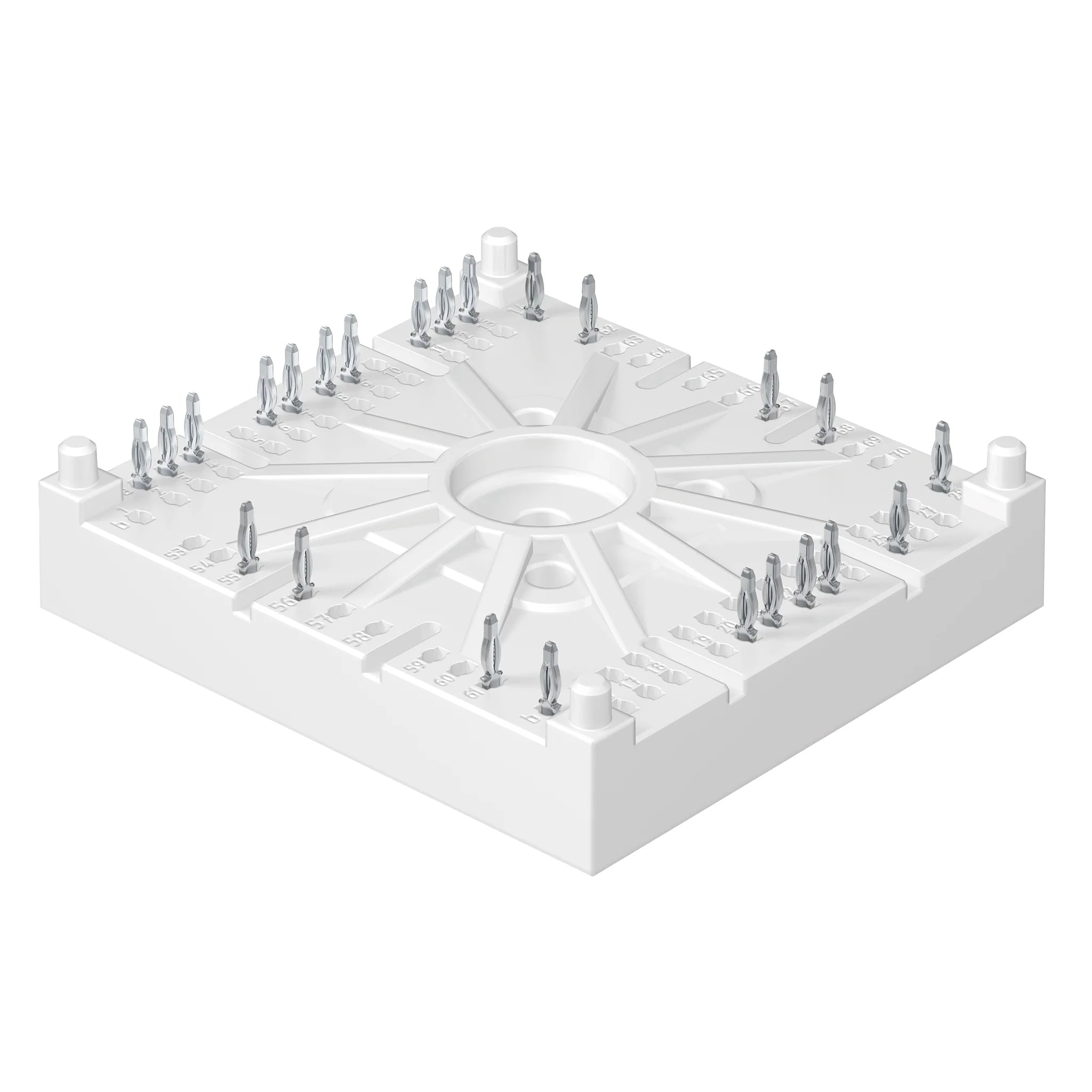

Semikron SK50GD12T4TP IGBT
Semikron SK50GD12T4TP IGBT

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

SEMIKRON

SK50GD12T4TP

SKU: 825702
In stock
Usually ships within 24 -48 hours
Request a Quote
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

SK50GD12T4TP - Semikron Danfoss Power Module

  • Current (A): 50 A
  • Dimensions (LxWxH): 61x55x12
  • Features: One screw mounting module Solder free mounting with Press-Fit terminals Fully compatible with other SEMITOP ® Press-Fit types Improved thermal performances by aluminium oxide substrate Trench4 IGBT technology CAL4F technology FWD Integrated NTC temperature sensor UL recognized, file no. E 63 532
  • Housing: SEMITOP 4 Press-Fit
  • Technology: IGBT
  • Topology: Sixpack
  • Typical applications: Inverter up to 26kVA Typical motor power 15kW
  • Voltage (V): 1200 V
