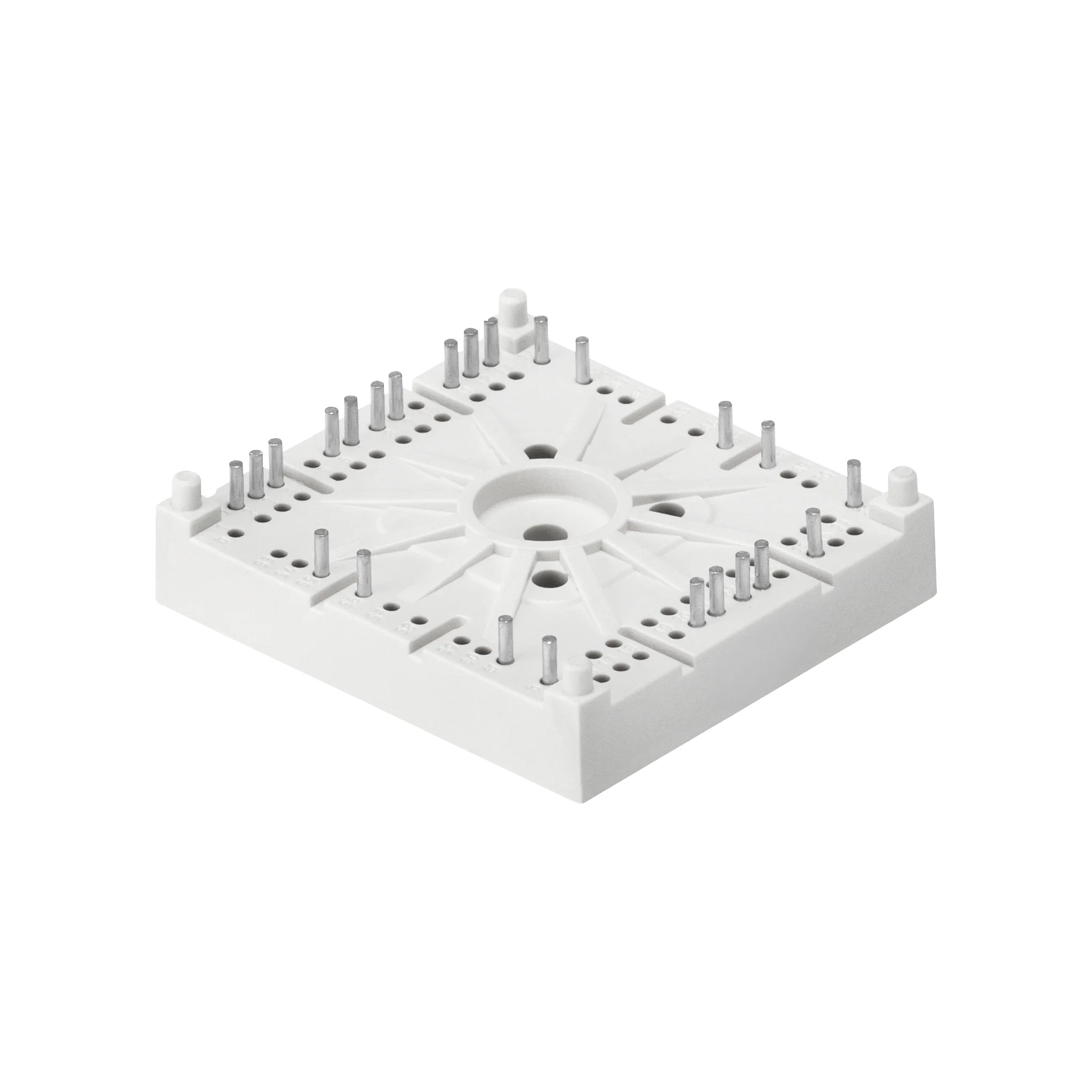

Semikron SK 50 GD 12T4 T-M01 IGBT
Semikron SK 50 GD 12T4 T-M01 IGBT

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

SEMIKRON

SK 50 GD 12T4 T-M01

SKU: 825453
In stock
Usually ships within 24 -48 hours
Request a Quote
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

SK 50 GD 12T4 T-M01 - Semikron Danfoss Power Module

  • Current (A): 50 A
  • Dimensions (LxWxH): 61x55x12
  • Features: Improved thermal performances by aluminium oxide substrate Trench4 IGBT technology Integrated NTC temperature sensor Fully compatible with SEMITOP ® 1,2,3 CAL4 technology FWD One screw mounting module
  • Housing: SEMITOP 4
  • Technology: IGBT
  • Topology: Sixpack
  • Typical applications: Air conditioning Motor drives Servo drives UPS Auxiliary Inverters
  • Voltage (V): 1200 V
